Removal Procedure

  1. Relieve the low and high side fuel system pressure. Refer to FUEL PRESSURE RELIEF .
  2. Remove the high pressure fuel pump shield. Refer to FUEL PIPE SHIELD REPLACEMENT .
  3. Disconnect the engine wiring harness electrical connector from the high pressure fuel pump.

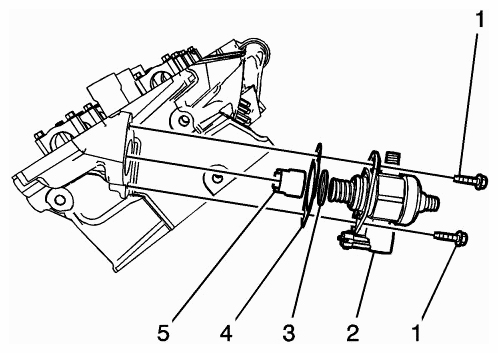

    Fig 1: Identifying Fuel Pump Related Components
    G09405085Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the low pressure feed pipe.
  5. Remove the high pressure pipe. Discard the pipe. Refer to Fuel Feed Intermediate Pipe .
  6. Remove and discard the high pressure fuel pump bolts (1).
  7. Remove the high pressure fuel pump (2).
  8. Remove and discard the high pressure fuel pump O-ring (3).
  9. Remove and discard the high pressure fuel pump gasket (4).
  10. Remove the high pressure fuel pump roller lifter (5).
