Removal Procedure

Refer to GASOLINE/GASOLINE VAPORS WARNING .

1. Relieve the fuel system pressure. Refer to FUEL PRESSURE RELIEF .
2. Drain the fuel tank. Refer to FUEL TANK DRAINING .
3. Remove the exhaust system. Refer to EXHAUST MUFFLER REPLACEMENT (LAU) or EXHAUST MUFFLER REPLACEMENT (LF1) .
4. If required, remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
5. Disconnect the evaporative emission line (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

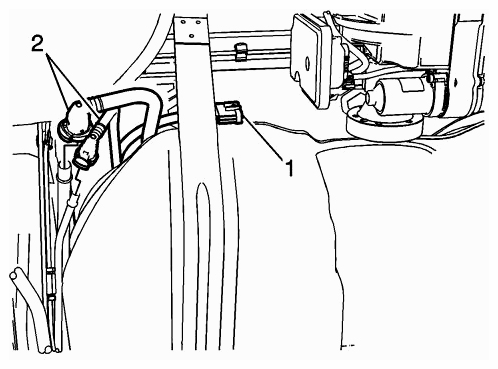

   Fig 1: Identifying Evaporative Emission Line And Hose Clamp

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Loosen the upper fill pipe clamp and hose clamp (2) and slide the hose up the filler pipe.
7. Disconnect the fuel tank electrical connector (1).

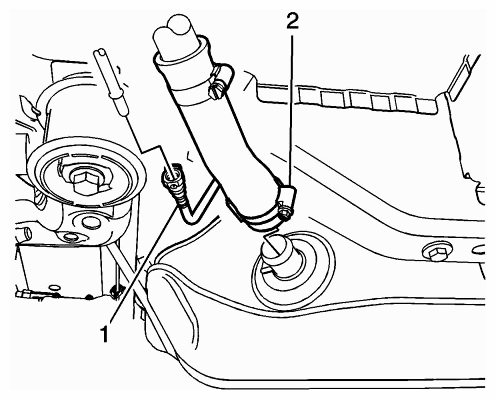

   Fig 2: Identifying Fuel Tank And Evaporative Emission Line Connector

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
8. Disconnect the fuel line and evaporative emission line connectors (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
9. Disconnect the evaporative emission line (1) from the canister.

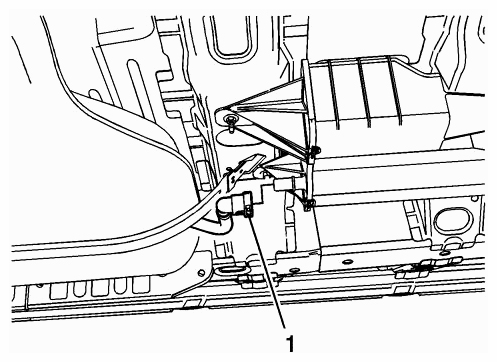

   Fig 3: Identifying Evaporative Emission Line

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
10. Support the fuel tank with a suitable jack.

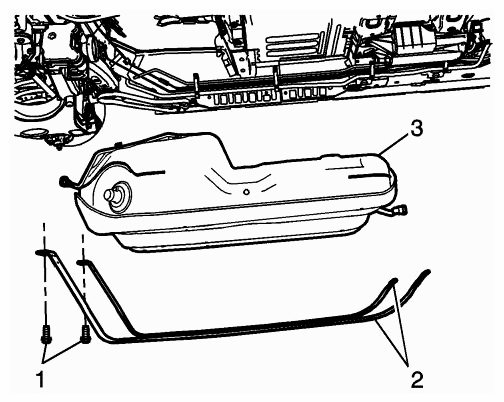

    Fig 4: Identifying Evaporative Emission Line, Straps And Mounting Bolts

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
11. Remove the fuel tank strap bolts (1) and reposition the straps (2) downward toward the front of the vehicle.
12. Using a suitable jack, lower the fuel tank (3).
13. Remove the following components if replacing just the fuel tank:

• The primary fuel tank module-Refer to PRIMARY FUEL TANK MODULE REPLACEMENT (NA3, NE9, NF9)  or PRIMARY FUEL TANK MODULE REPLACEMENT (NT7, NU5) .
• The secondary fuel tank module-Refer to Secondary Fuel Tank Module Replacement .
