Fuel feed pipe, replacement (engine)

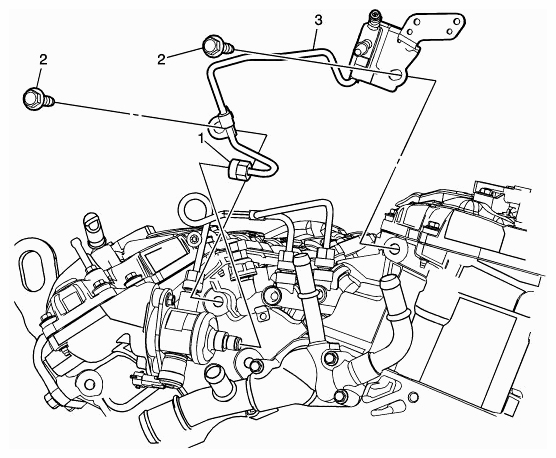

Fig 1: Identifying Fuel Feed Pipe And Mounting Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Relieve the fuel system pressure. Refer to FUEL PRESSURE RELIEF  Remove the intake manifold cover. Refer to INTAKE MANIFOLD COVER REPLACEMENT Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
1	Fitting (Qty: 1) Refer to CAUTION: RETAINER Tighten  28 Nm (20 lb ft)
2	Bolt (Qty: 2) Tighten  50 Nm (28 lb ft)
3	Fuel Feed Pipe Procedure  Discard the pipe when removed and install a new pipe. Ensure that the high pressure fuel pipe, and fuel pump fittings are clean and dry prior to assembly. Pressure up the fuel system and check for leaks.
