Knock Sensor Replacement - Bank 1

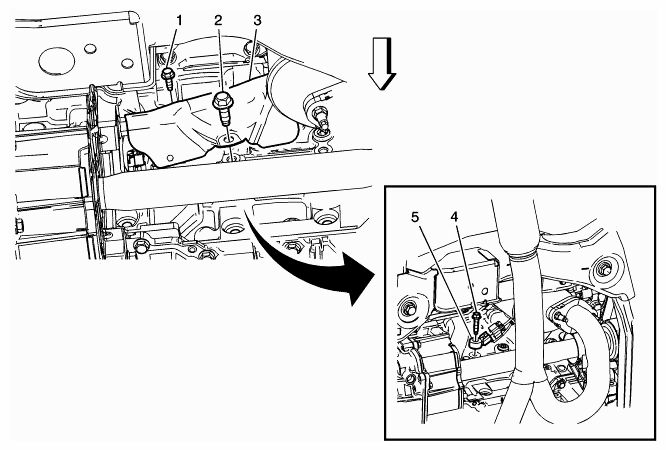

Fig 1: Identifying Knock Sensor And Mounting Bolt - Bank 1

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  If equipped with AWD, remove the right side catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT - RIGHT SIDE (LF1) . Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Bolt Refer to CAUTION: RETAINER Tighten  25 Nm (18 lb ft)
2	Bolt Tighten  58 Nm (42 lb ft)
3	Exhaust Manifold Lower Heat Shield
4	Bolt Tighten  23 Nm (17 lb ft)
5	Knock Sensor Procedure  Disconnect the electrical connector.
