Knock Sensor Replacement - Bank 2

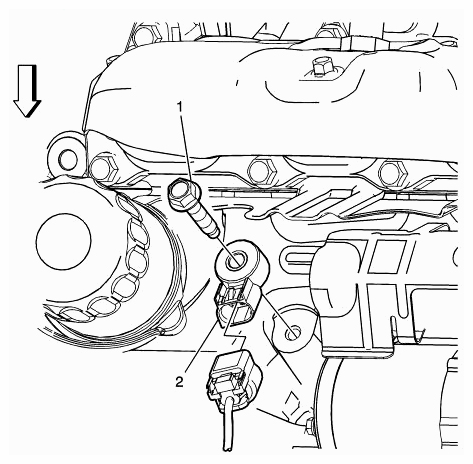

Fig 1: Identifying Knock Sensor And Mounting Bolt - Bank 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures
Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Knock Sensor Fastener Refer to CAUTION: RETAINER Tighten  23 Nm (17 lb ft)
2	Knock Sensor Procedure  Disconnect the electrical connector.
