Installation Procedure

If replacing the fuel pump module only, install the primary fuel level sensor. Refer to Primary Fuel Level Sensor Replacement .

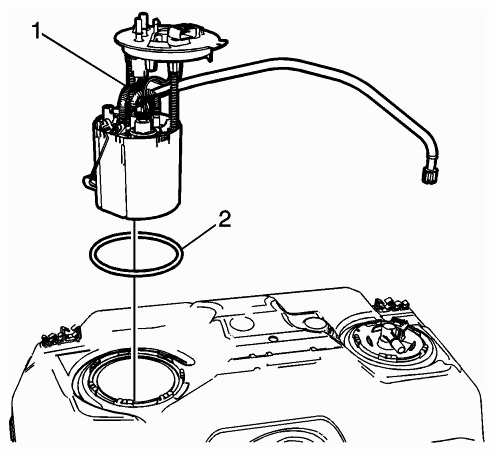

Fig 1: Identifying Primary Fuel Tank Module And O-Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install a NEW O-ring (2) and the primary fuel tank module (1).
Using the CH 48482 wrench, install the cam lock ring (1) by turning clockwise.

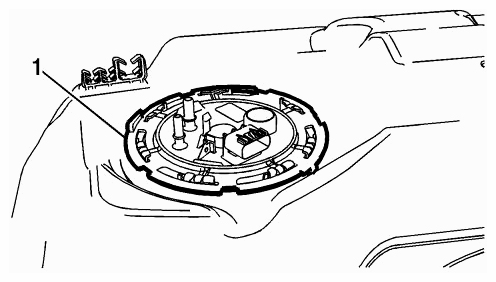

Fig 2: Identifying Cam Lock Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the secondary fuel pump module. Refer to Secondary Fuel Tank Module Replacement .
Connect the electrical connectors (1) to the primary and secondary fuel tank modules.

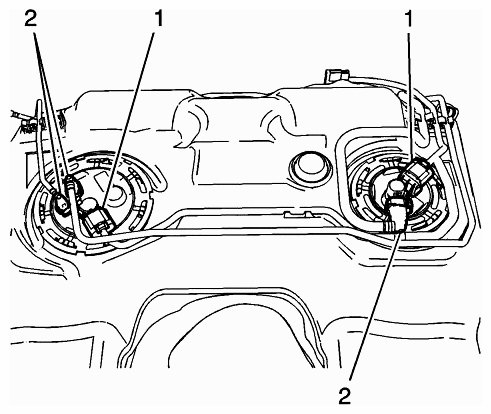

Fig 3: Identifying Evaporative Emission Lines, Primary And Secondary Fuel Tank Modules Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the fuel and evaporative emission lines (2). Refer to Plastic Collar Quick Connect Fitting Service .
Install the fuel tank. Refer to Fuel Tank Replacement .
