Charging And Starting System: Wiring diagram: Charging: Notes

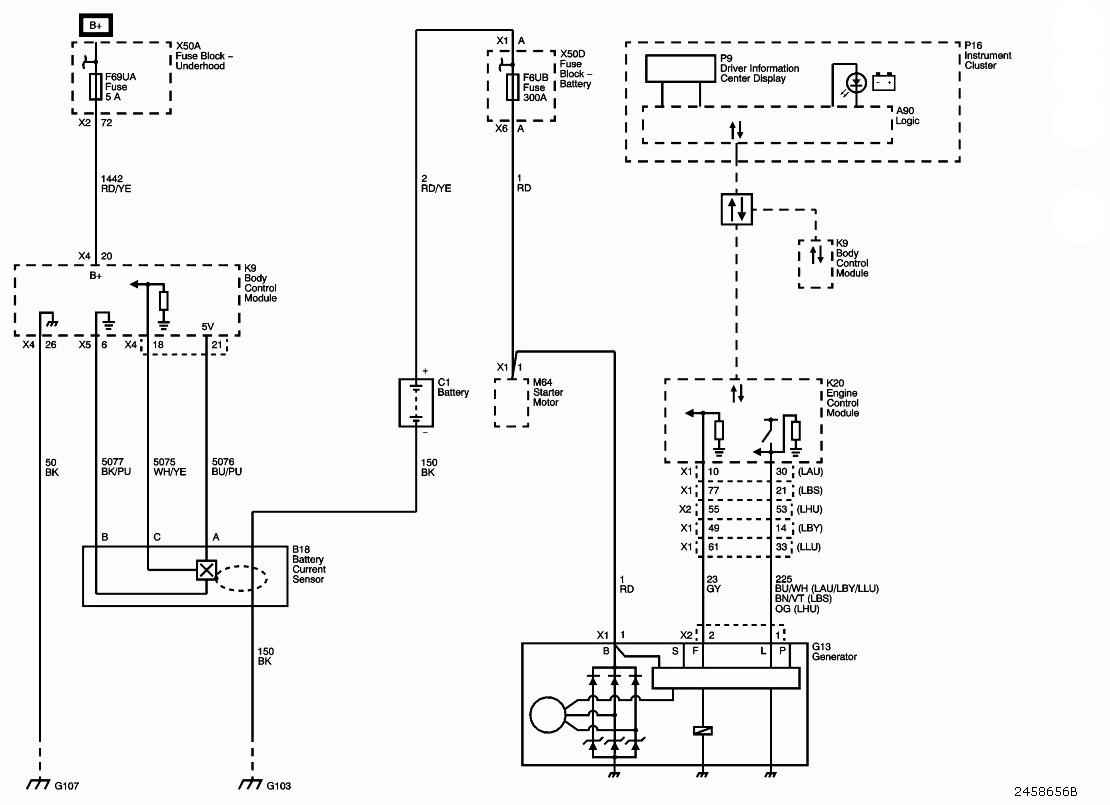

Fig 1: Charging - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
