Headlamp Switch Replacement

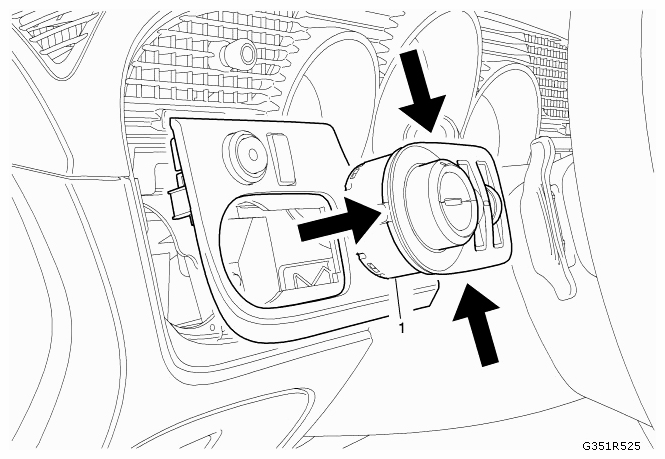

Fig 1: Locating Headlamp Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel headlamp switch molding. Refer to HEADLAMP SWITCH MOLDING REPLACEMENT .
1	Headlamp Switch Procedure  Disconnect the electrical connector. NOTE: Use a flat-bladed plastic trim tool in order to release the retaining clips.
