Rear Seat Heater Control Module Replacement

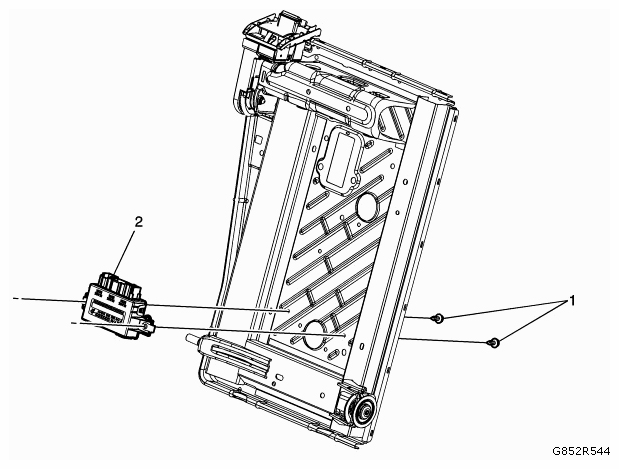

Fig 1: Identifying Rear Seat Heater Control Module And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove rear seat back cushion cover and pad. Refer to REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (40%)  or REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (60%) .
1	Rear Seat Heater Control Module Fastener (Qty: 2)
2	Rear Seat Heater Control Module Procedure  Disconnect the electrical connector. Refer to CONTROL MODULE REFERENCES for programming and setup information.
