Headlamp Control Module Replacement

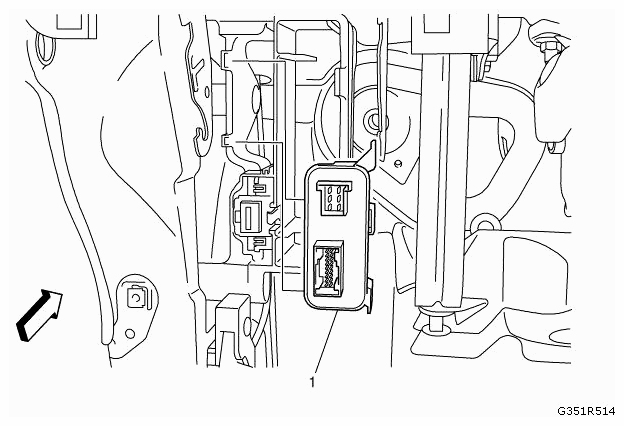

Fig 1: Identifying Headlamp Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower trim pad cover. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE . Remove the body control module. Refer to BODY CONTROL MODULE REPLACEMENT (RIGHT HAND DRIVE) or BODY CONTROL MODULE REPLACEMENT (LEFT HAND DRIVE) .
1	Headlamp Control Module Procedure  Disconnect the electrical connectors. Remove the headlamp control module. Set up and program the headlamp control module. Refer to CONTROL MODULE REFERENCES .
