Trailer Lamp Control Module Replacement
Trailer Lamp Control Module Replacement

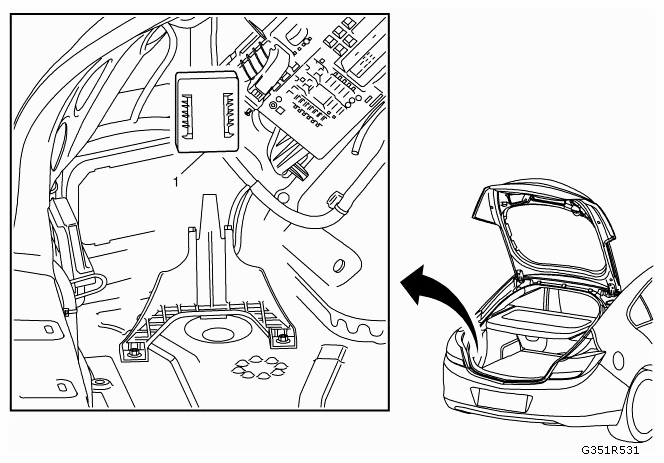

Fig 1: Identifying Trailer Lamp Control Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout
Component Name
1
Trailer Lamp Control Module
Procedure
Release the trailer lamp control module bracket locking retainer from the trailer lamp control module.
Disconnect the trailer lamp control module electrical connector.
