Drive Belt Replacement

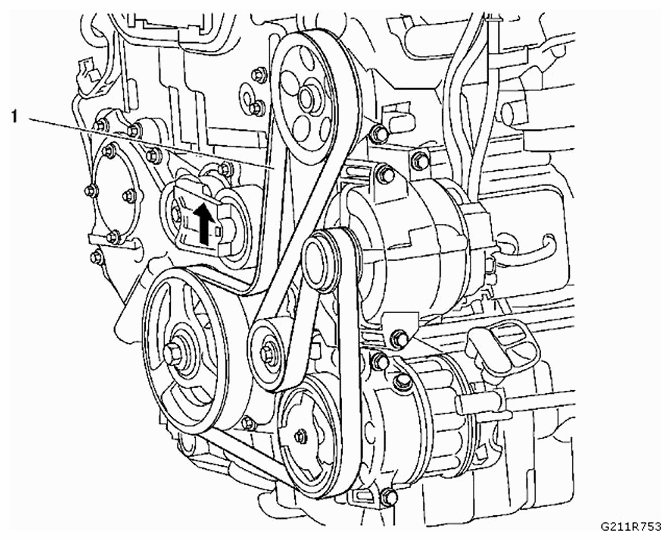

Fig 1: Removing Drive Belt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front compartment splash shield. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT .
1	Drive Belt Procedure Lift up the drive belt tensioner with EN-6151-A chuck key and remove the generator and air conditioning compressor belt. Special Tools EN-6151-A Chuck Key
