Engine Sight Bracket Replacement

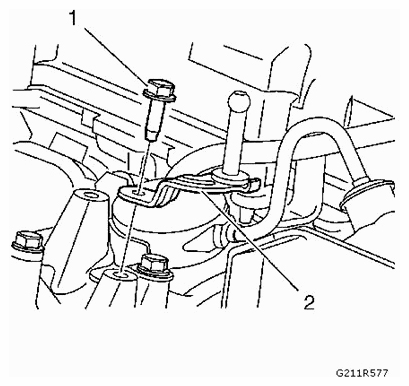

Fig 1: Removing Engine Sight Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT .
1	Engine Sight Shield Bracket Fastener Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Engine Sight Shield Bracket
