Timing Chain Guide Replacement - Upper

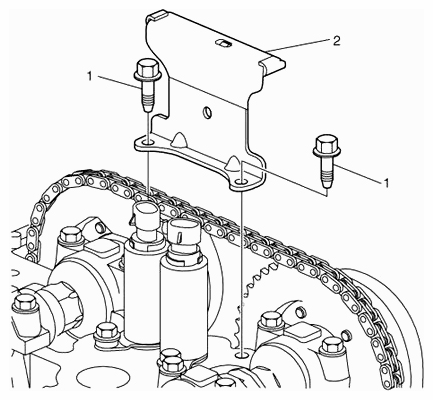

Fig 1: Removing Timing Chain Guide

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the camshaft cover. Refer to CAMSHAFT COVER REPLACEMENT .
1	Timing Chain Guide Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Timing Chain Guide
