Timing Chain Guide Replacement

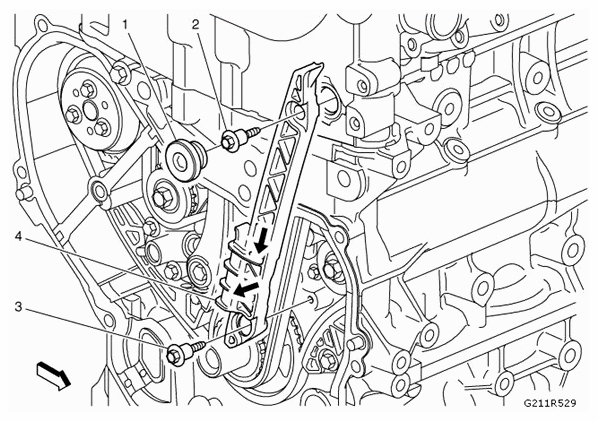

Fig 1: Removing Timing Chain Guide

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the oil pump gear. Refer to OIL PUMP GEAR REPLACEMENT .
1	Timing Chain Guide Access Hole Plug Fastener Refer to FASTENER CAUTION . Tighten  75 Nm (55 lb ft)
2	Timing Chain Guide Fastener Tighten  12 Nm (106 lb in)
3	Timing Chain Guide Fastener Tighten  12 Nm (106 lb in)
4	Timing Chain Guide
