Engine Block - Back View

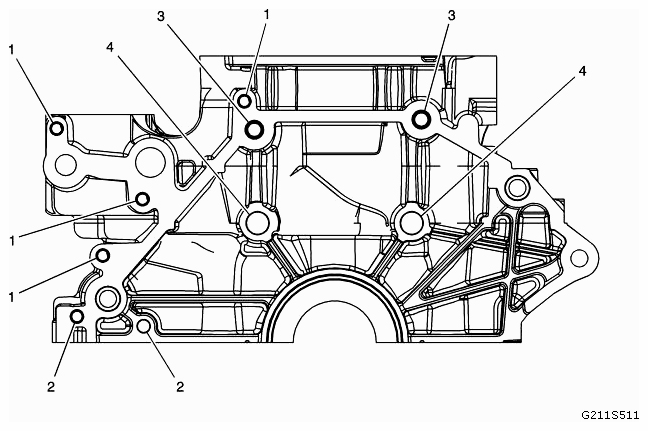

Fig 1: Identifying Engine Block Thread Locations (Back View)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ENGINE BLOCK SPECIFICATIONS (BACK VIEW)

Service Call Out	Thread Size	Insert	Drill	Counterbore Tool	Tap	Driver	Drill Depth Maximum		Tap Depth Maximum
J 42385-850							MM	IN	MM	IN
1	M8 x 1.25	210	206	207	208	209	24	0.945	THRU
2	M10 x 1.5	215	211	212	213	214	29	1.161	THRU
3	M12 x 1.75	855	856	857	858	859	39	1.535	33.5	1.32
4	M16 x 1.5	860	861	862	863	864	21	0.827	15	0.59
