Engine Block - Right Side View

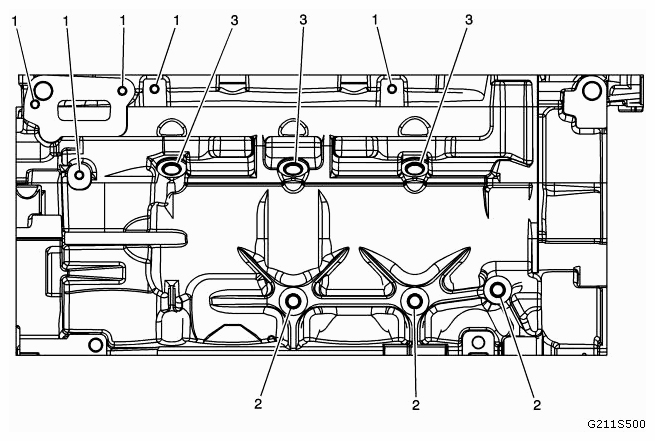

Fig 1: Identifying Engine Block Thread Locations (Right Side View)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ENGINE BLOCK SPECIFICATIONS (RIGHT SIDE VIEW)

Service Call Out	Thread Size	Insert	Drill	Counterbore Tool	Tap	Driver	Drill Depth Maximum		Tap Depth Maximum
J 42385-850							MM	IN	MM	IN
1	M6 x 1	205	201	202	203	204	22.5	0.886	16	0.63
2	M10 x 1.5	215	211	212	213	214	34	1.339	27	1.063
3	M12 x 1.75	865	856	857	858	859	19.5	0.768	12.5	0.49
