Accelerator Pedal Position Sensor Replacement

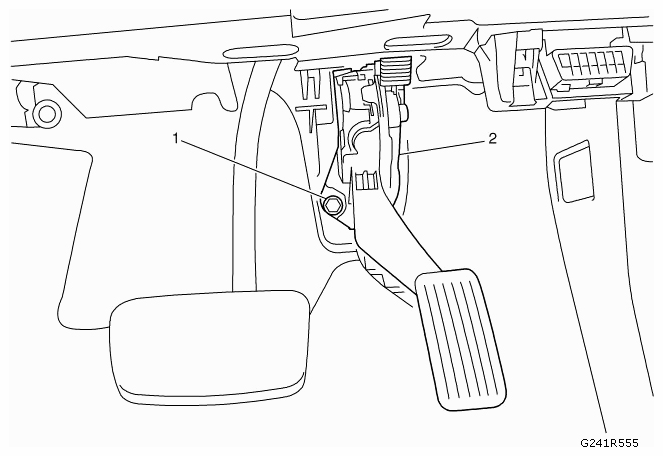

Fig 1: Identifying Accelerator Pedal Position Sensor And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower trim panel insulator. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE .
1	Accelerator Pedal Position Sensor Fastener Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Accelerator Pedal Position Sensor
