Direct Fuel Injector Replacement

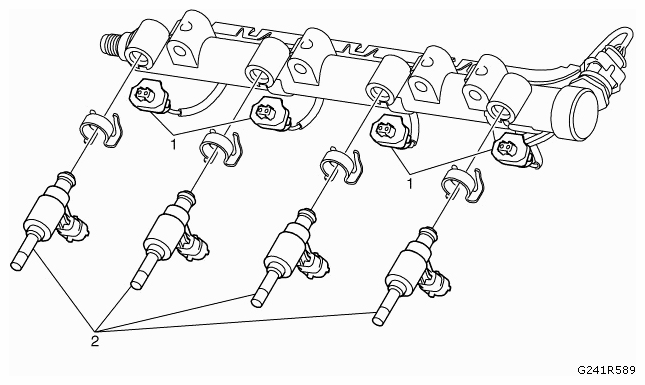

Fig 1: Removing Fuel Injection Fuel Rail Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the fuel injection fuel rail assembly. Refer to FUEL INJECTION FUEL RAIL ASSEMBLY REPLACEMENT .
1	Direct Fuel Injector Procedure  Disconnect the electrical connector.
2	Direct Fuel Injector Procedure  Remove the injector with EN-37281-A  injector remover and DT-2619-01  slide hammer. Special Tools  EN-37281-A  Injector Remover DT-2619-01  Slide Hammer For equivalent regional tools, refer to SPECIAL TOOLS (LDK, LHU) .
