Engine Coolant Temperature Sensor Replacement

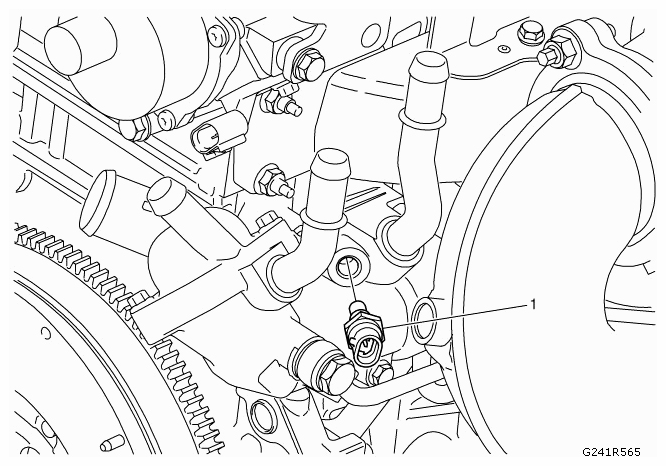

Fig 1: Disconnecting Electrical Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT . Drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LHU/A20NFT) .
1	Engine Coolant Temperature Sensor Refer to FASTENER CAUTION . Procedure  Use a new gasket. Disconnect the electrical connector. Tighten  20 Nm (15 lb ft)
