Fuel Pump Module Replacement

Callout	Component Name
WARNING: Relieve the fuel system pressure before servicing fuel system components in order to reduce the risk of fire and personal injury. After relieving the system pressure, a small amount of fuel may be released when servicing the fuel lines or connections. In order to reduce the chance of personal injury, cover the regulator and the fuel line fittings with a shop towel before disconnecting. This will catch any fuel that may leak out. Place the towel in an approved container when the disconnection is complete. Preliminary Procedure  Remove engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT . Remove the fuel feed intermediate pipe. Refer to FUEL FEED INTERMEDIATE PIPE REPLACEMENT . Release the fuel feed pipe - metal. Refer to FUEL FEED PIPE REPLACEMENT (METAL)  or FUEL FEED PIPE REPLACEMENT (PLASTIC) .
1	Fuel Pump Module Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  15 Nm (11 lb ft)
2	Fuel Pump Module Procedure  Fuel pump insulator of the fuel pump module. Disconnect the electrical connector.

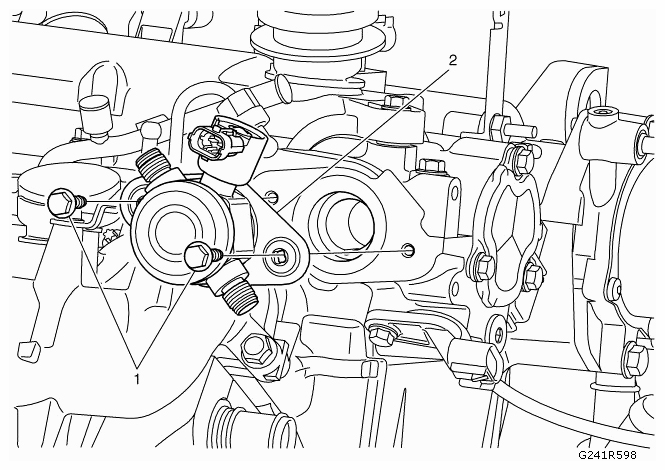

Fig 1: Removing Fuel Pump Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.
