Disassembly Procedure

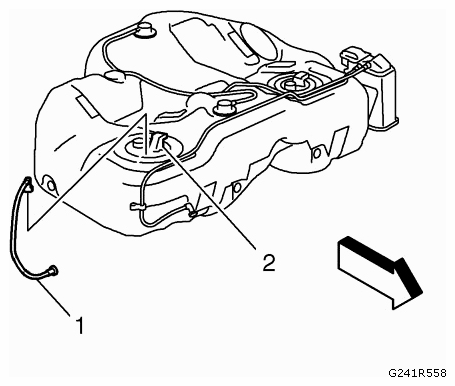

Disconnect the fuel feed pipe (1) from the fuel tank and the fuel tank fuel pump module (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

Fig 1: Disconnecting Fuel Feed Pipe From Fuel Tank And Fuel Tank Fuel Pump Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Do NOT use impact tools. Significant force will be required to release the lock ring. The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.

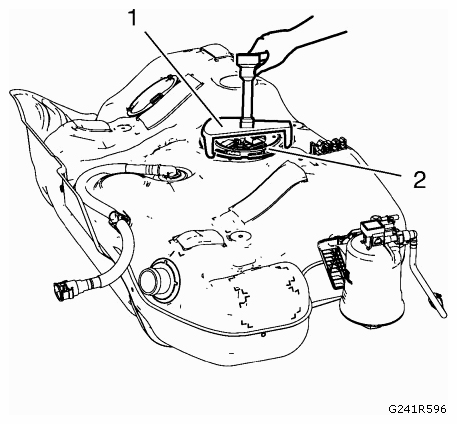

Install the EN-48279 remover/installer (1) to the fuel pump module lock ring (2).

Fig 2: Installing EN-48279 Remover/Installer To Fuel Pump Module Lock Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.

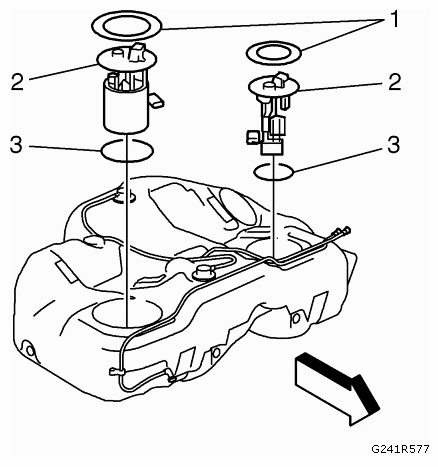

Using the EN-48279 remover/installer and a long breaker-bar, rotate the fuel pump module lock rings (1) in a counterclockwise direction in order to unlock the fuel pump module lock rings.

Fig 3: Unlocking Fuel Pump Module Lock Rings
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the fuel tank fuel pump modules (2).
NOTE: Lift the fuel tank fuel pump modules up slightly.

Remove and discard the fuel tank fuel pump module O-ring seals (3).
