Fuel Tank Protector Replacement

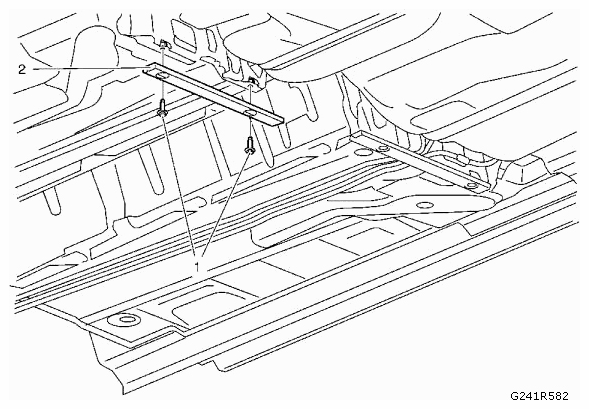

Fig 1: Removing Fuel Tank Protector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Fuel Tank Protector Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  58 Nm (43 lb ft)
2	Fuel Tank Protector
