Spark Plug Replacement: Notes

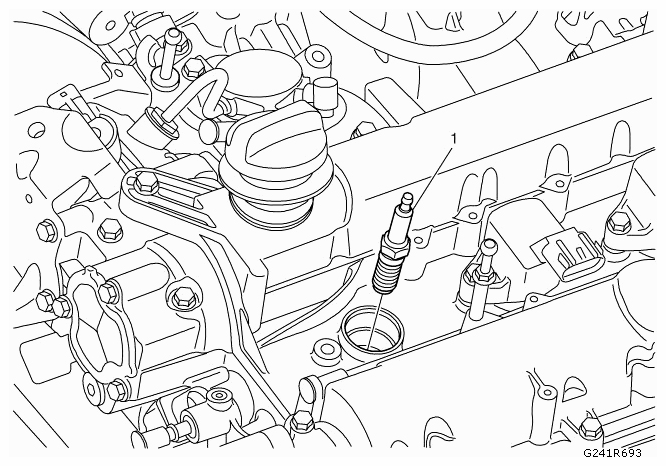

Fig 1: Removing Spark Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the ignition coil. Refer to IGNITION COIL REPLACEMENT .
1	Spark Plug Refer to FASTENER CAUTION . Tighten  20 Nm (15 lb ft)
