Engine Oil Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

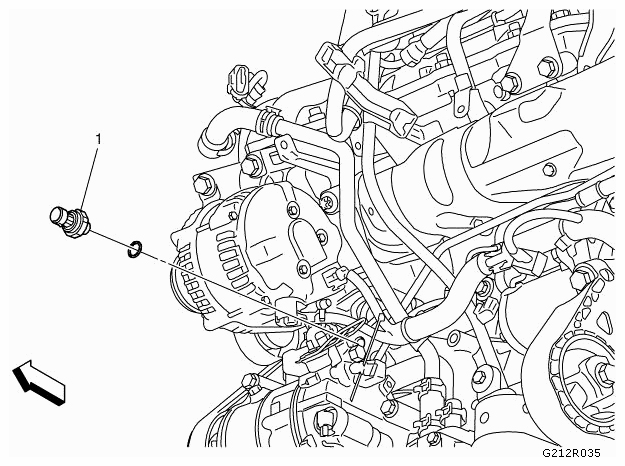

Fig 1: Identifying Engine Oil Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the charge air cooler outlet air hose. Refer to CHARGE AIR COOLER OUTLET HOSE REPLACEMENT (LAU/A28NER) .
1	Engine Oil Pressure Sensor Refer to FASTENER CAUTION . Procedure Disconnect the electrical connector. Tighten 20 Nm (15 lb ft)
