Engine Support Fixture (Front Side)

WARNING: This page is about a different variant/trim than selected.

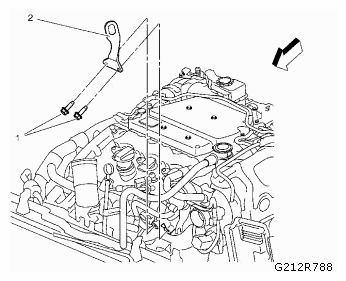

Fig 1: Identifying Engine Support Fixture And Fastener (Front Side)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure
Remove the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT .
1	Engine Support Fixture (Front) Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 65 Nm (48 lb ft)
2	Engine Support Fixture (Front Side)
