Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Position the primary camshaft drive chain lower guide to the oil pump.

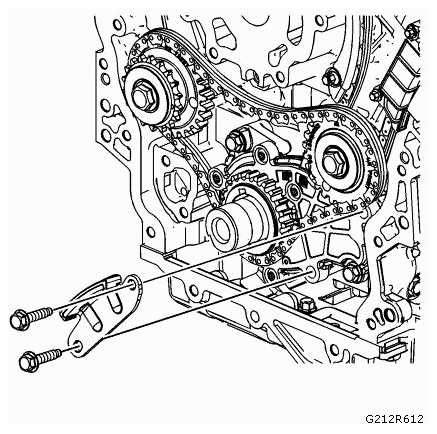

    Fig 1: Identifying Primary Camshaft Drive Chain Lower Guide And Mounting Bolts
    G09438418Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refer to FASTENER CAUTION .

    Install the primary camshaft drive chain lower guide bolts and tighten to 23 Nm (17 lb ft)  .

  3. Install the primary camshaft drive chain tensioner. Refer to PRIMARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT .
