Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the left bank secondary camshaft drive chain guide (1). Refer to SECONDARY TIMING CHAIN GUIDE INSTALLATION - LEFT SIDE .

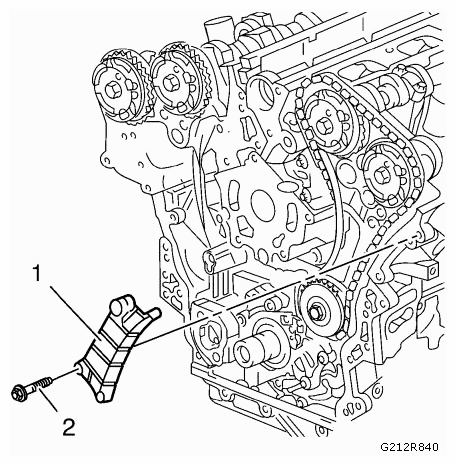

    Fig 1: Identifying Left Bank Secondary Camshaft Drive Chain Guide And Mounting Bolt
    G09438405Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the left bank secondary camshaft drive chain tensioner. Refer to SECONDARY TIMING CHAIN TENSIONER INSTALLATION - LEFT SIDE .
  3. Install the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
