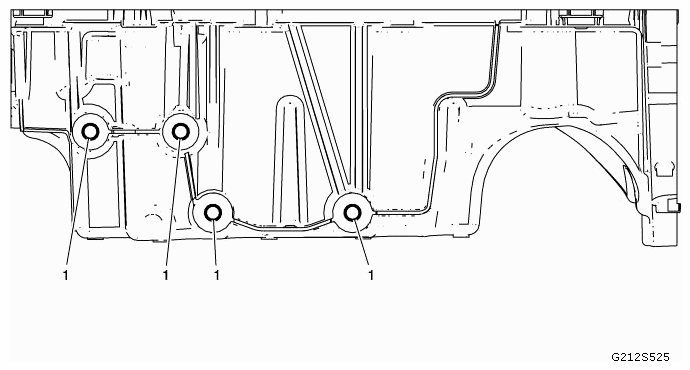

Oil Pan Left Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC. THREAD REPAIR SPECIFICATIONS
| Hole Location |
Thread Size |
Drill |
Counterbore Tool |
Stop Collar |
Tap |
Driver |
Insert |
Drill Depth (Maximum) |
| |
|
J 42385- |
MM |
(IN) |
| 1 |
M10 x 1.5 |
211 |
212 |
N/A |
213 |
214 |
420 |
33.5 |
1.3189 |
