Oil Pan

WARNING: This page is about a different variant/trim than selected.

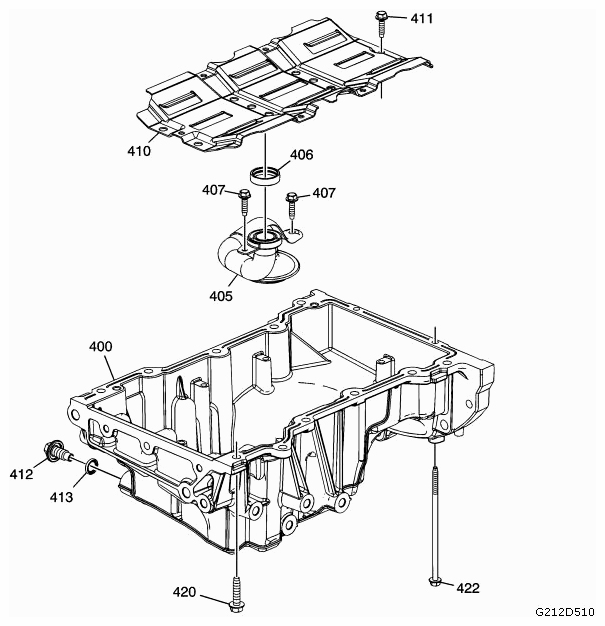

Fig 1: Disassembled View Of Oil Pan Assembly
G09438342Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. (400) Oil Pan
  2. (405) Oil Pump Suction Pipe
  3. (406) Oil Pump Suction Pipe Gasket
  4. (407) Oil Pump Suction Pipe Bolt
  5. (407) Oil Pump Suction Pipe Bolt
  6. (410) Oil Pan Baffle Scraper
  7. (411) Oil Pan Baffle Scraper Bolt
  8. (412) Oil Pan Drain Plug
  9. (413) Oil Pan Drain Plug O-ring
  10. (420) Oil Pan Bolt
  11. (422) Oil Pan Bolt - Long

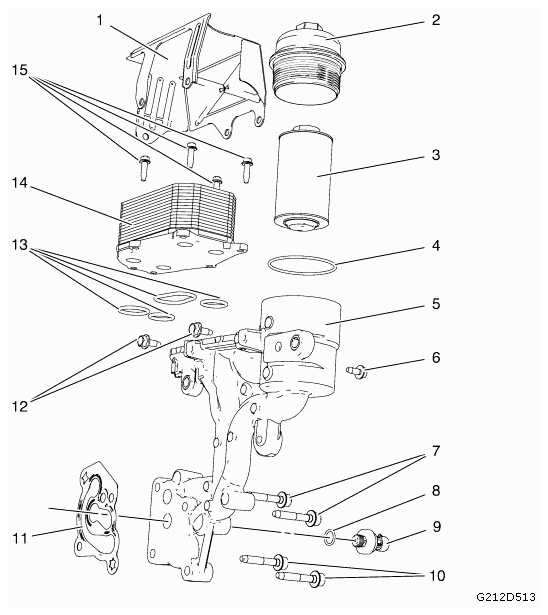

Fig 2: Identifying Oil Filter Related Components
G09438343Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Heat Shield
  2. Oil Filter Cap
  3. Oil Filter
  4. Oil filter cap O-ring
  5. Oil Filter Cover
  6. Heat Shield Bolt
  7. Oil Filter Adapter Bolt
  8. Engine Oil Pressure Sensor - O-Ring
  9. Engine Oil Pressure Sensor
  10. Oil Filter Adapter Bolt
  11. Oil Filter Adapter Gasket
  12. Heat Shield Bolt
  13. Oil Cooler O-ring
  14. Oil Cooler
  15. Oil Cooler Bolt
