Engine Oil Level Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

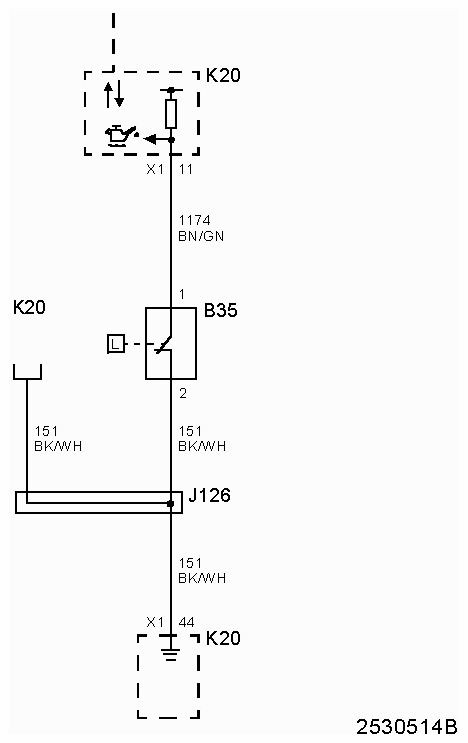

Fig 1: Engine Oil Level Sensor - Circuit Diagram

G09439256

Courtesy of SAAB-SCANIA OF AMERICA, INC.
