Front Position Lamp Bulb Replacement

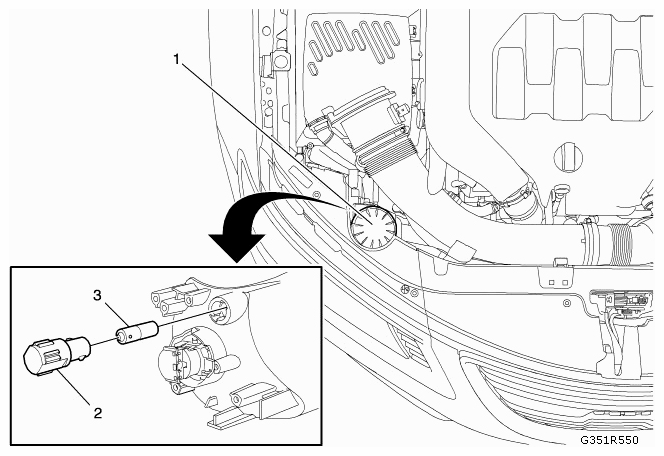

Fig 1: Identifying Front Position Lamp Bulb, High Beam Dust Cover And Bulb Socket Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	High Beam Dust Cover
2	Bulb Socket Retainer Procedure  Rotate the bulb socket retainer a quarter turn counter-clockwise to release the assembly.
3	Front Position Lamp Bulb Refer to HALOGEN BULB WARNING . Procedure  Rotate and pull the front position lamp bulb from the lamp socket.
