Removal Procedure

NOTE: Secure the chain boxes with the hook chains on the outside of the engine bridge.

With the aid of an assistant, remove the EN-47649 engine bridge (5).

Remove the safety pins (2).

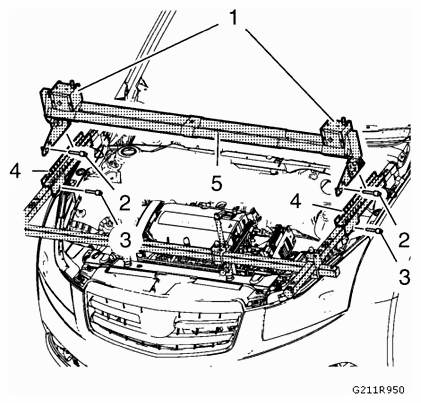

Fig 1: Removing EN-47650-50 Rail From EN-47650 Retainer Frame
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The EN-47650-50 rail is the equipment of the EN-47650 retainer frame and enclosed in the EN-47650 retainer frame tool kit.

Remove the EN-47650-50 rail (4) from the EN-47650 retainer frame.

Remove the safety pins (3).
Remove the front right side of the EN-47650 retainer frame:

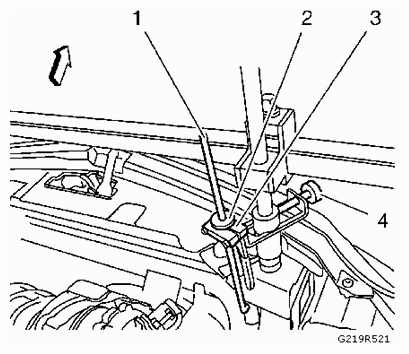

Fig 2: Aligning Thumb Wheel Hook To Upper Tie Bar
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Loosen the bolts from the clamping piece (3).
- Loosen the hook (1) with the thumb wheel (2) and turn the hook 90° from the upper tie bar.
Remove the front left side of the EN-47650 retainer frame:

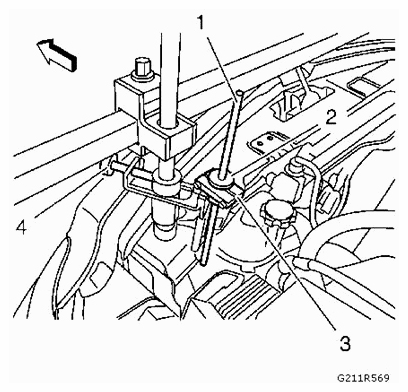

Fig 3: Removing Upper Tie Bar Hook Using Thumb Wheel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Loosen the bolts from the clamping piece (3).
- Loosen the hook (1) with the thumb wheel (2) and turn the hook 90° from the upper tie bar.
Loosen the rear side of the EN-47650 retainer frame:

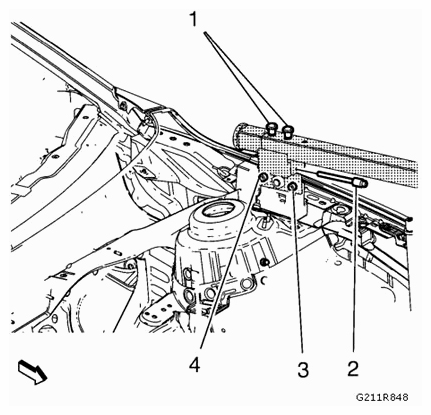

Fig 4: Removing Safety Pins From EN-47650-300 Rear Adapters
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 5.1. Loosen the EN-47650 retainer frame from the EN-47650-300 rear adapters with the mounting bolts (1).
2. 5.2. Remove the safety pins (2) from the EN-47650-300 rear adapters and the side bars.
With the aid of an assistant, remove the EN-47650 retainer frame (1) from the vehicle.

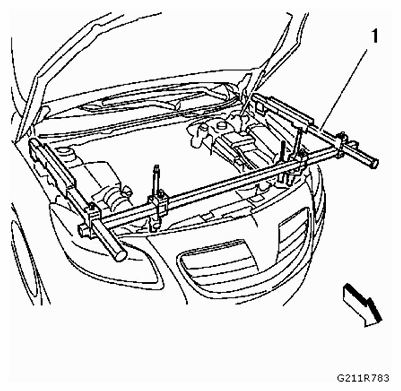

Fig 5: Removing EN-47650 Retainer Frame From Vehicle
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the engine wiring harness connectors to the headlamp mount panel reinforcement - left side.

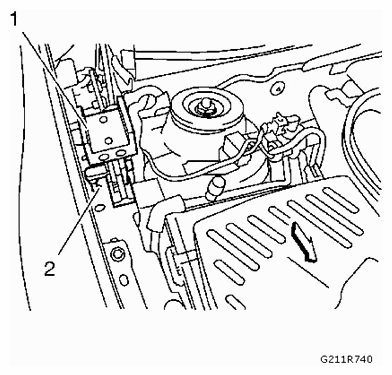

Remove the EN-47650-300 rear adapter (1) from the front compartment rail.

Fig 6: Removing EN-47650-300 Rear Adapter From Front Compartment Rail
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Clean all contact surfaces (1) from the EN-47650 retainer frame on the upper tie bar.

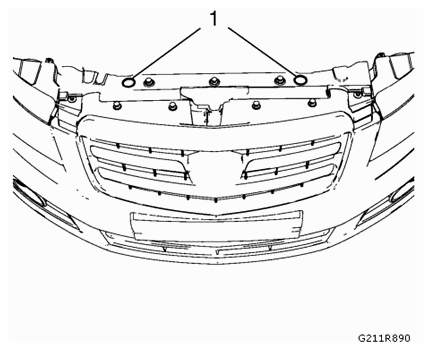

Fig 7: Identifying EN-47650 Upper Tie Bar Retainer Frame Contact Surface
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install both wiring harness retainer to both front compartment rails.
