Manifold Absolute Pressure Sensor Replacement

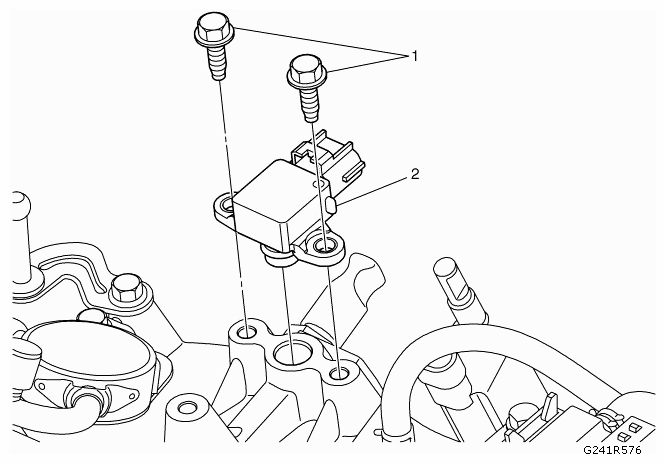

Fig 1: Removing Manifold Absolute Pressure Sensor And Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT .
1	Manifold Absolute Pressure Sensor Fastener (Qty: 2) Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  4 Nm (36 lb in)
2	Manifold Absolute Pressure Sensor
