Installation Procedure
WARNING: This page is about a different variant/trim than selected.

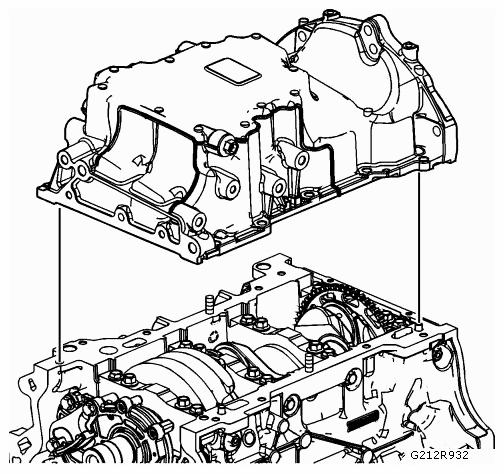

- Install the oil pan. Refer to OIL PAN INSTALLATION .
- Refer to FASTENER CAUTION
.
Install the 4 oil sump fastener nuts to the gearbox and tighten to 60 Nm (44 lb ft) .
- Install the air conditioning (A/C) compressor. Refer to AIR CONDITIONING COMPRESSOR REPLACEMENT (LAU/A28NER) .
- Install the oil filter adapter. Refer to OIL FILTER ADAPTER REPLACEMENT .
- Install the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
- Refill the engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT .
