Oil Pump Installation

WARNING: This page is about a different variant/trim than selected.

Align the oil pump drive gear with the crankshaft flats and install the oil pump to the engine block.

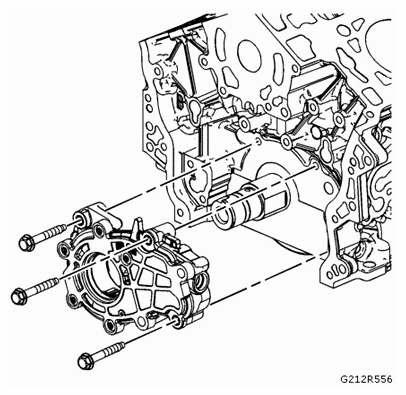

Fig 1: Identifying Oil Pump And Mounting Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Align the pump body with the mounting holes in the cylinder block.
Refer to FASTENER CAUTION .

Install the oil pump bolts and tighten to 25 Nm (18 lb ft).
