Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the primary camshaft drive chain tensioner. Refer to PRIMARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT .
  2. Remove the primary camshaft drive chain lower guide bolts.

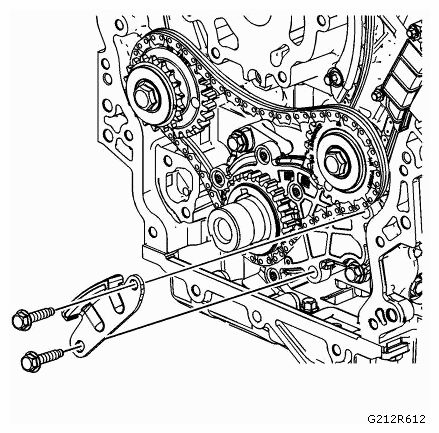

    Fig 1: Identifying Primary Camshaft Drive Chain Lower Guide And Mounting Bolts
    G09438417Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the primary camshaft drive chain lower guide.
