Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .

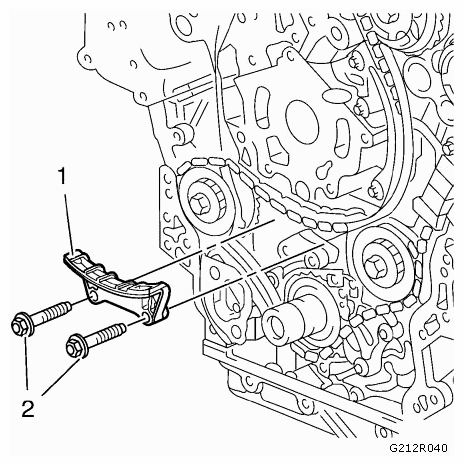

    Fig 1: Identifying Primary Upper Timing Chain Guide And Mounting Bolt
    G09438419Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the primary timing chain tensioner. Refer to PRIMARY TIMING CHAIN TENSIONER REMOVAL .
  3. Remove the primary upper timing chain guide (1). Refer to PRIMARY TIMING CHAIN GUIDE REMOVAL - UPPER .
