Camshaft Timing Components

WARNING: This page is about a different variant/trim than selected.

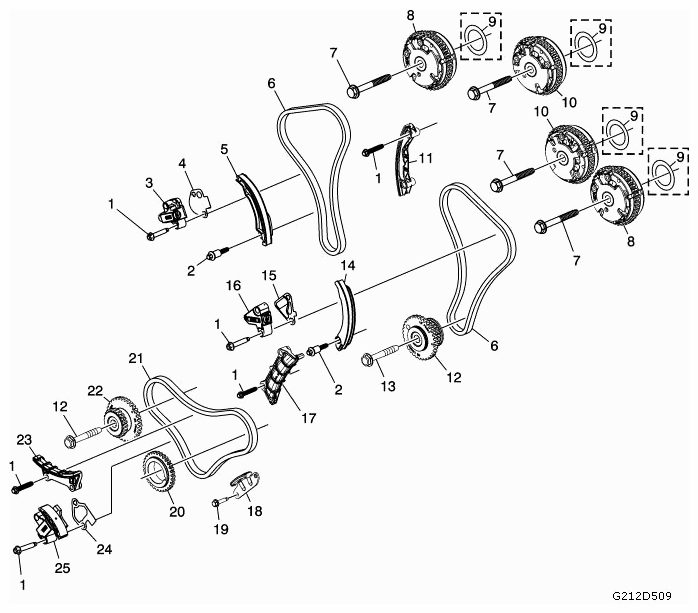

Fig 1: Disassembled View Of Camshaft Timing Assembly
G09438330Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Primary Timing Chain Tensioner Bolt
  2. Left Secondary Timing Chain Shoe Bolt
  3. Right Secondary Timing Chain Tensioner
  4. Right Secondary Timing Chain Tensioner Gasket
  5. Right Secondary Timing Chain Shoe
  6. Secondary Timing Chain
  7. Camshaft Position Actuator Bolt
  8. Exhaust Camshaft Position Actuator
  9. Camshaft Position Actuator Thrust Washer
  10. Intake Camshaft Position Actuator
  11. Right Secondary Timing Chain Guide
  12. Left Camshaft Intermediate Drive Shaft Sprocket
  13. Camshaft Intermediate Drive Shaft Sprocket Bolt
  14. Left Secondary Timing Chain Shoe
  15. Left Secondary Timing Chain Tensioner Gasket
  16. Left Secondary Timing Chain Tensioner
  17. Left Secondary Timing Chain Guide
  18. Lower Primary Timing Chain Guide
  19. Lower Primary Timing Chain Guide Bolt
  20. Crankshaft Sprocket
  21. Primary Timing Chain
  22. Right Camshaft Intermediate Drive Shaft Sprocket
  23. Upper Primary Timing Chain Guide
  24. Primary Timing Chain Tensioner Gasket
  25. Primary Timing Chain Tensioner
