Cylinder Head Assembly

WARNING: This page is about a different variant/trim than selected.

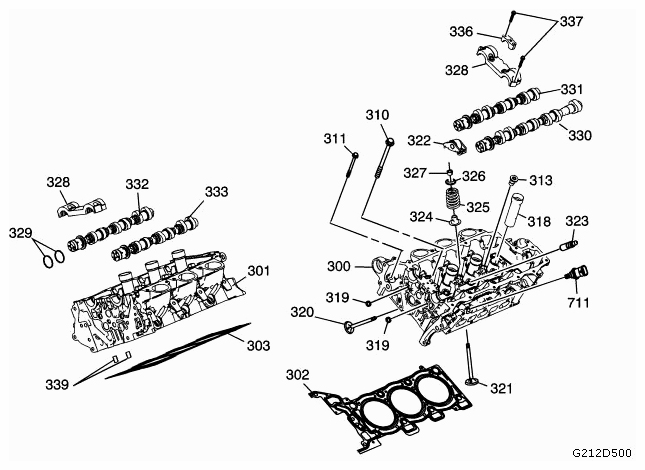

Fig 1: Disassembled View Of Cylinder Head Assembly
G09438335Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. (300) Left Cylinder Head Assembly
  2. (301) Right Cylinder Head Assembly
  3. (302) Left Cylinder Head Gasket
  4. (303) Right Cylinder Head Gasket
  5. (310) Cylinder Head Bolt
  6. (311) Cylinder Head Front Bolt
  7. (313) Cylinder Head Coolant Hole Threaded Plug
  8. (318) Spark Plug Socket
  9. (319) Cylinder Head Oil Gallery Expansion Plug - 14 mm
  10. (319) Cylinder Head Oil Gallery Expansion Plug - 14 mm
  11. (320) $ exhaust valve
  12. (321) $ intake valve
  13. (322) Valve Rocker Arm Assembly
  14. (323) Hydraulic Valve Lash Adjuster Assembly
  15. (324) Valve Stem Oil Seal
  16. (325) Valve Spring
  17. (326) Valve Spring Cap
  18. (327) Valve Stem Key
  19. (328) Cylinder Head Camshaft Front Thrust Bearing Cap
  20. (328) Cylinder Head Camshaft Front Thrust Bearing Cap
  21. (329) Camshaft Oil Seal Ring
  22. (330) Left Exhaust Camshaft
  23. (331) Left Intake Camshaft
  24. (332) Right Intake Camshaft
  25. (333) Right Exhaust Camshaft
  26. (336) Cylinder Head Camshaft Cap - Intermediate
  27. (337) Cylinder Head Camshaft Cap Bolt
  28. (339) Cylinder Head Oil Gallery Check Valve
  29. (711) Engine Coolant Temperature Sensor
