Engine Front Cover (LF1)

WARNING: This page is about a different variant/trim than selected.

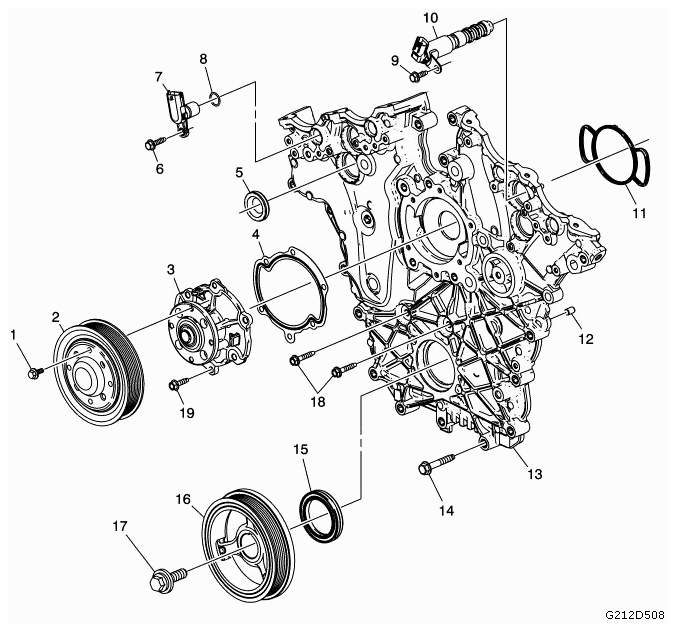

Fig 1: Disassembled View Of Engine Front Cover Assembly (LF1)
G09438336Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Water Pump Pulley Bolt
  2. Water Pump Pulley
  3. Water Pump Assembly
  4. Water Pump Pulley Gasket
  5. Camshaft Position Actuator Solenoid Valve Seal
  6. Camshaft Position Sensor Bolt
  7. Camshaft Position Sensor
  8. Camshaft Position Sensor O-ring Seal
  9. Camshaft Position Actuator Solenoid Valve Bolt
  10. Camshaft Position Actuator Solenoid Valve
  11. Engine Front Cover Gasket
  12. Engine Front Cover Locating Pin
  13. Engine Front Cover Assembly
  14. Engine Front Cover Bolt
  15. Engine Front Cover Seal
  16. Crankshaft Balancer
  17. Crankshaft Balancer Bolt
  18. Engine Front Cover Bolt
  19. Water Pump Bolt
