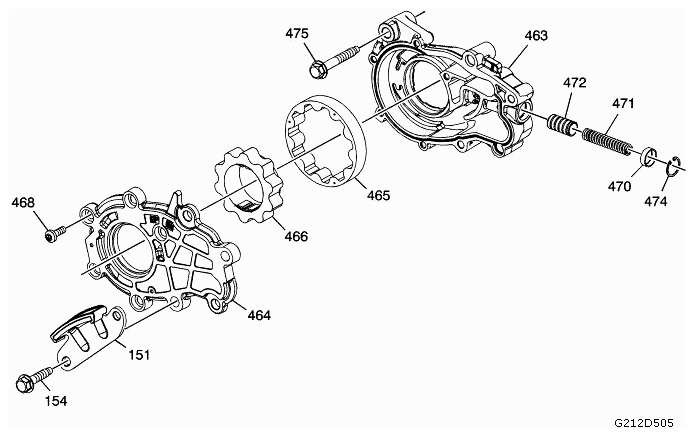

Oil Pump
WARNING: This page is about a different variant/trim than selected.
- (151) Lower Primary Timing Chain Guide
- (154) Lower Primary Timing Chain Guide Bolt
- (463) Oil Pump Housing
- (464) Oil Pump Cover
- (465) Oil Pump Driven Gear
- (466) Oil Pump Drive Gear
- (468) Oil Pump Cover Bolt
- (470) Oil Pressure Relief Valve Bore Plug
- (471) Oil Pressure Relief Valve Spring
- (472) Oil Pressure Relief Valve
- (474) Oil pressure Relief Valve Bore Plug Retainer Clip
- (475) Oil Pump Bolt
