Installation Procedure

Install reverse gear block (2) to transmission control lever knob.

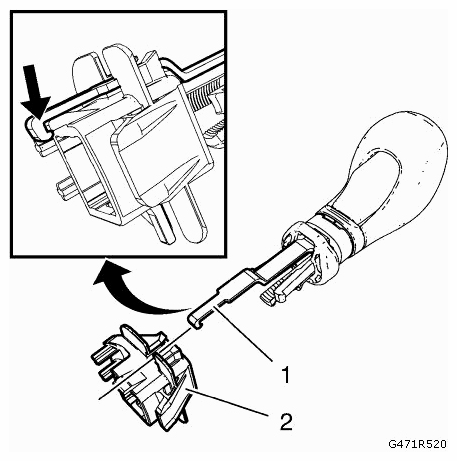

Fig 1: Installing Reverse Gear Block To Transmission Control Lever Knob
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Let the hook (1) engage hearable (arrow).
Install transmission control lever knob.

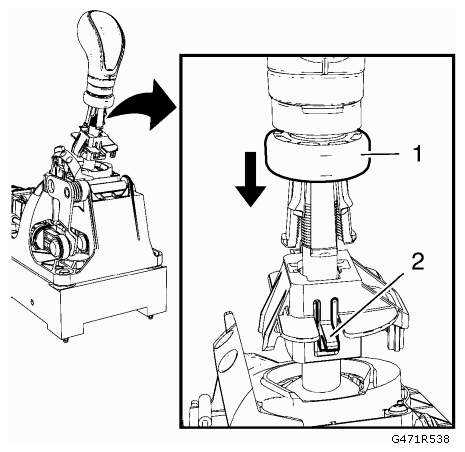

Fig 2: Installing Transmission Control Lever Knob
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Push trigger (2) upwards.
Press the transmission control lever knob during installation completely down.
Slide blue transmission control lever retainer ring (1) downwards.
Clip transmission control lever boot (1) into front floor console.

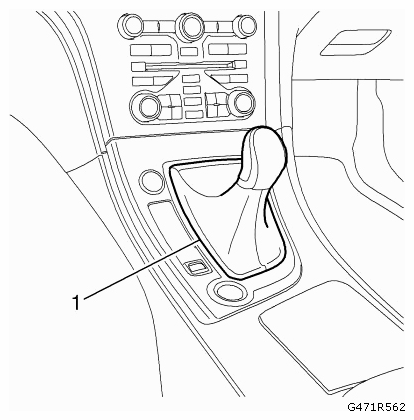

Fig 3: Identifying Transmission Control Lever Boot
Courtesy of SAAB-SCANIA OF AMERICA, INC.
