Removal Procedure

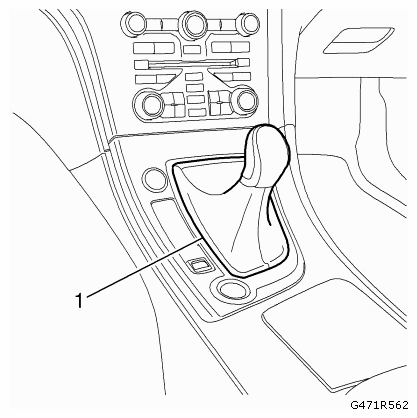

Remove transmission control lever boot (1) from front floor console, gently pulling boot frame on front side upwards.

Fig 1: Sliding Transmission Control Lever Boot Upwards
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Slide transmission control lever boot upwards.

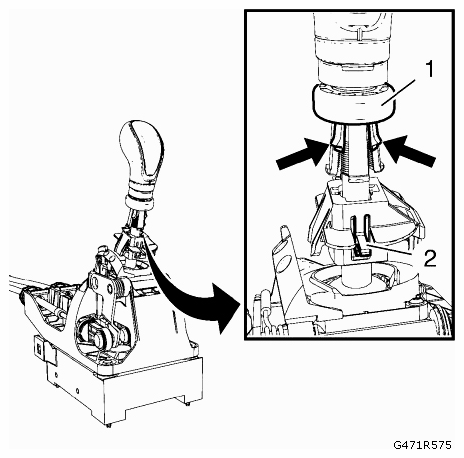

Fig 2: Pressing Latches
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Press 2 latches (arrows).
Slide blue transmission control lever retainer ring (1) upwards.
Pull trigger (2) upwards.
Remove the lever knob.

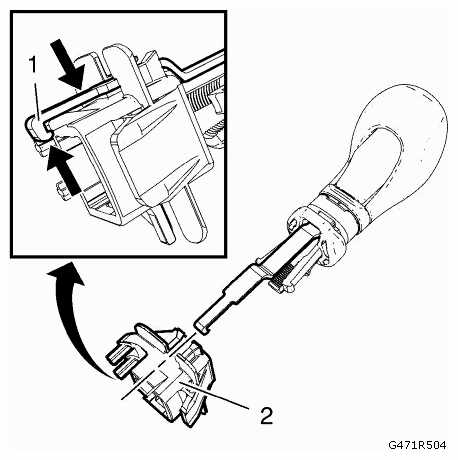

Press pull latch (1) in direction of arrows.

Fig 3: Removing Reverse Gear Block From Transmission Control Lever Knob
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove reverse gear block (2) from transmission control lever knob.
