Installation Procedure

  1. Install NEW transmission control lever (2).

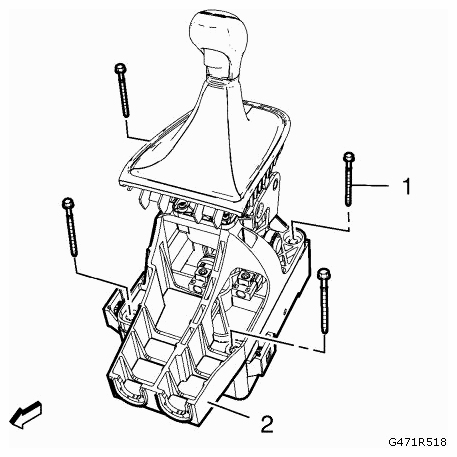

    Fig 1: Identifying Transmission Control Lever With Fasteners
    G09439330Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refer to FASTENER CAUTION .

    Install the four transmission control lever fasteners (1) and tighten to 8 Nm (71 lb in).

  3. NOTE: Do not lock yet.

    Slide shift lever and selector lever cable into shift lever and selector lever cable adjust locks (2).

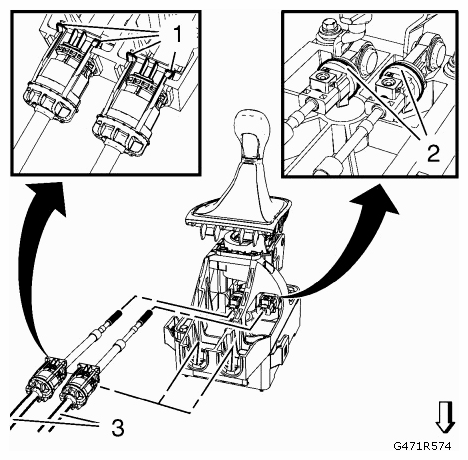

    Fig 2: Identifying Shift Lever And Selector Lever Cable
    G09439331Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Clip shift lever and selector lever cable (3) into transmission control lever housing (1).
  5. Adjust shift lever and selector lever cable. Refer to MANUAL TRANSMISSION SHIFT LEVER CABLE ADJUSTMENT .
  6. Install the front floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT .
