Removal Procedure

Remove the front floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT .
Unlock shift lever and selector lever cable adjust locks (2).

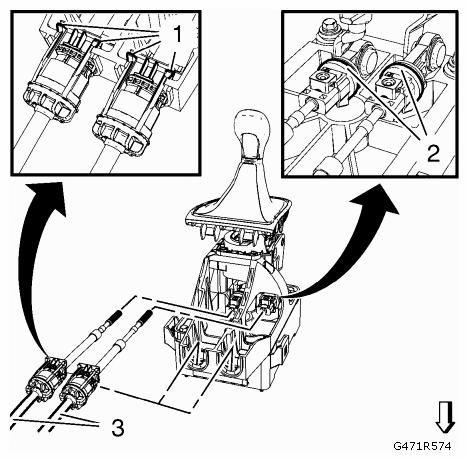

Fig 1: Identifying Shift Lever And Selector Lever Cable, Transmission Control Lever Housing And Cable Adjust Locks
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Clip shift lever and selector lever cable (3) out of transmission control lever housing (1).
Remove the four transmission control lever fasteners (1).

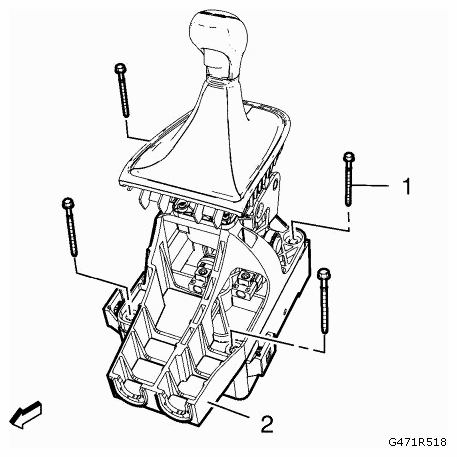

Fig 2: Identifying Transmission Control Lever With Fasteners
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove transmission control lever (2).
