Sunroof Module Assembly Replacement

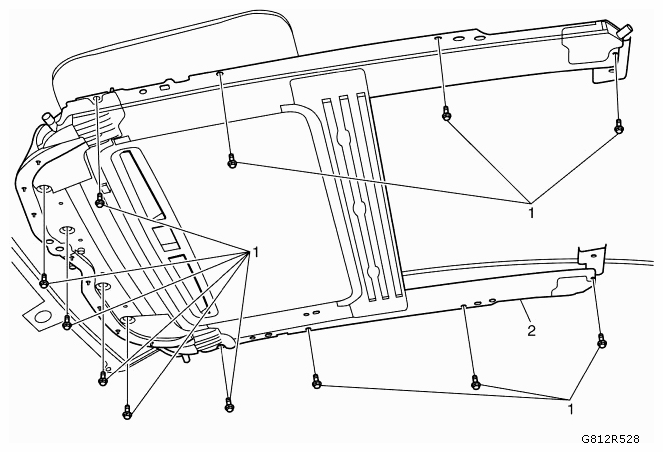

Fig 1: Identifying Sunroof Module Assembly And Sunroof Housing Control Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the headlining trim panel. Refer to HEADLINING TRIM PANEL REPLACEMENT (WITHOUT SUNROOF) or HEADLINING TRIM PANEL REPLACEMENT (WITH SUNROOF) .
1	Sunroof Housing Control Fastener (Qty: 12) Refer to FASTENER CAUTION . Procedure  Disconnect the wiring harness connector of the sunroof motor. Disconnect the water drain hoses in the front and rear. NOTE: For sunroof removal and installation it is necessary to have 2 technicians for support. Tighten  9 Nm (80 lb in)
2	Sunroof Module Assembly
