Engine Coolant Temperature Sensor Replacement

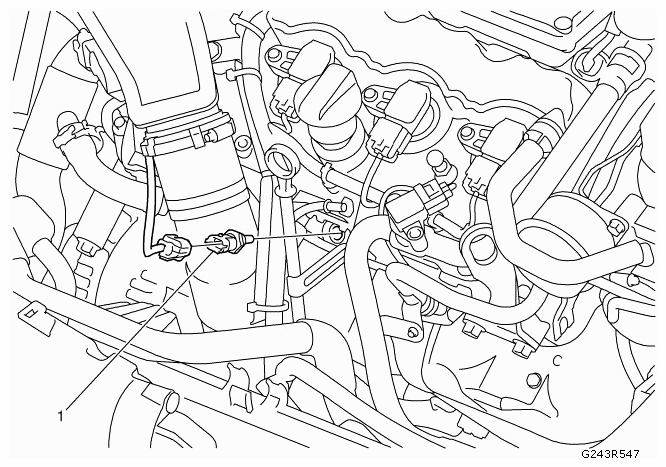

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the fuel injector sight shield (engine cover). Remove the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT . Remove the ventilation hose from the oil level indicator tube. Loosen the oil level indicator tube.
1	Engine Coolant Temperature Sensor Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  30 Nm (22 lb ft)
