Fuel Pressure Sensor Replacement

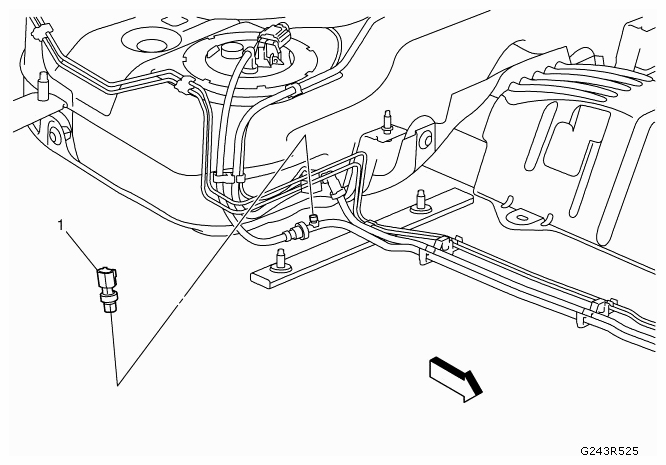

Fig 1: Identifying Fuel Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Turn the ignition OFF. Relieve the fuel system pressure. Refer to FUEL PRESSURE RELIEF . Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Fuel Pressure Sensor Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  15 Nm (11 lb ft)
