Installation Procedure

Refer to FASTENER CAUTION .
Install the fuel tank to the hydraulic lift.
Connect the fuel tank fuel pump module wiring harness connectors (1) to the fuel tank fuel pump modules.

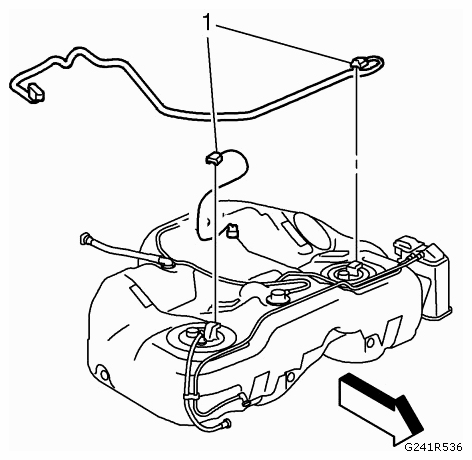

Fig 1: Identifying Fuel Pump Module Wiring Harness Connectors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

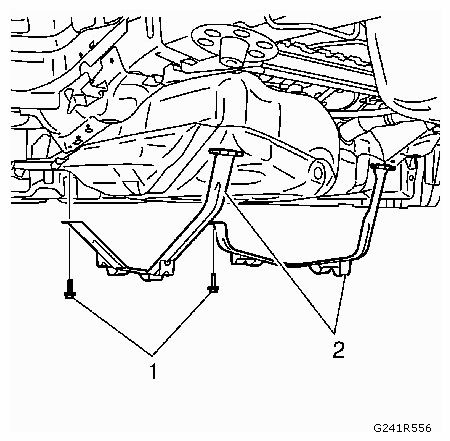

Fig 2: Identifying Fuel Tank Straps

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install both fuel tank strap fasteners (1).
Remove the hydraulic lift from the fuel tank.
Install both front fasteners of the rear axle. Refer to REAR AXLE REPLACEMENT (G96)REAR AXLE REPLACEMENT (WITHOUT G96) .
Connect the fuel feed front pipe quick connector to the fuel feed front pipe (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

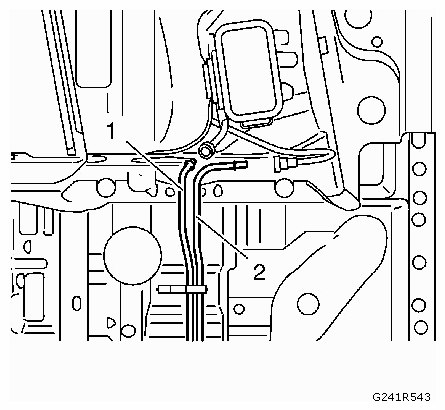

Fig 3: Identifying Front Pipe Quick Connector To Fuel Feed Front Pipe
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the evaporative emission front pipe quick connector to the evaporative emission front pipe (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
Install the fuel tank filler hose (4).

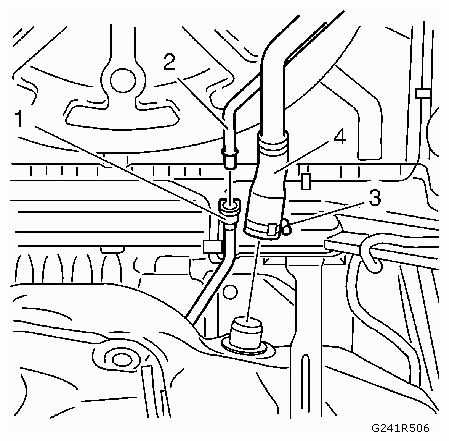

Fig 4: Identifying Fuel Tank Filler Hose
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the fuel tank filler hose fastener (3) and tighten to 4 Nm (35 lb in).
Connect the fuel tank filler vent pipe quick connector (1) to the fuel tank filler vent pipe (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Close the hood.
